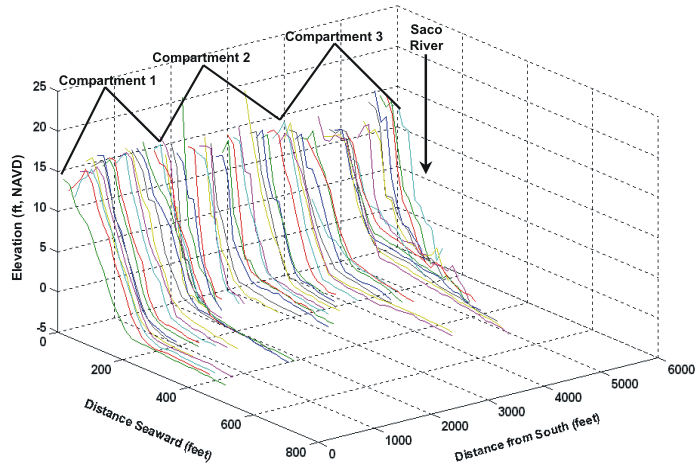

Figure 12A. Beach profiles along region 1, stretching from rocky outcrop at the southern end of Hills Beach northwards to the southern Saco River jetty.

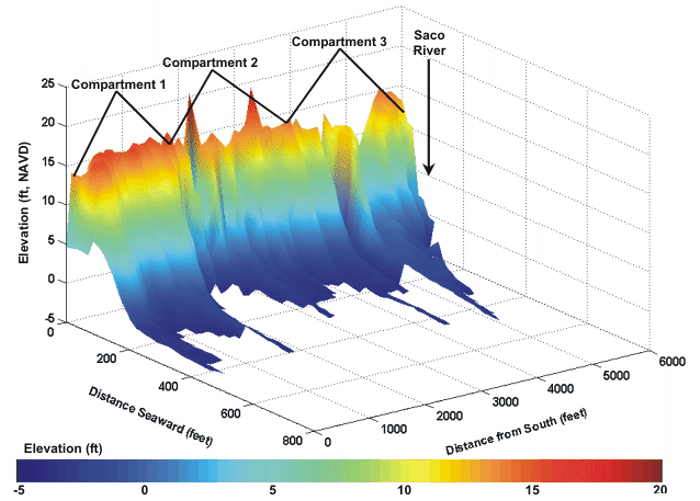

Figure 12B. Color-interpolated plot of beach profiles along region 1. Note the steeper profiles with, in general, lower elevations from near 2,000-5,000 ft, and the seaward progradation of profiles nearest the Saco River jetty, and at the southern end of Hills Beach.
